Buy Tools and Hardware in Canada
  • Image 1

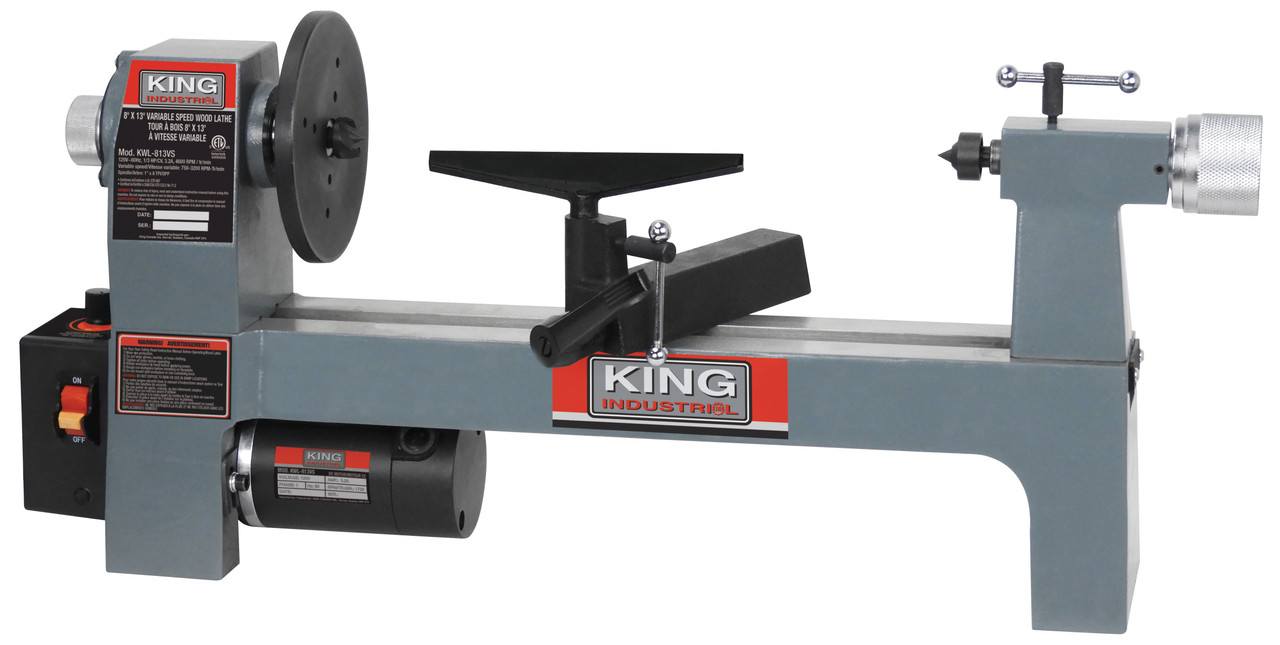

King Canada KWL-813VS - 8'' x 13'' Variable speed wood lathe

$299.99 $406.00
(You save $106.01)
SKU:
KINKWL-813VS
UPC:
772995016778
Weight:
42.00 LBS
Availability:
Special Order: Usually Ships in 1-2 Weeks.
Shipping:
$30.00 (Fixed shipping cost)
Shipping:
$30.00 (Fixed shipping cost)
Qty:

Product Details

    Details:

  • High performance 1/3 HP (300 Watt) DC motor
  • Ideal for pens and other small detailed turnings
  • All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
  • 8" inboard swing for bowl turning
  • Maximum turning capacity of 13" between centers
  • Variable speed range of 750 to 3200 RPM
  • Chrome plated handwheels on both the headstock and tailstock
  • Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys

    Specifications:

  • SWING OVER BED: 8"
  • SWING OVER TOOL POST BASE: 5-1/5"
  • DISTANCE BETWEEN CENTERS: 13"
  • SPINDLE SIZE (RH THREAD): 1" x 8 TPI
  • SPINDLE BORE: 3/8"
  • VARIABLE SPEED RANGE: 750 - 3200 RPM
  • HEADSTOCK, TAILSTOCK TAPER: MT #1
  • TAILSTOCK TRAVEL: 1-9/16"
  • DC MOTOR: 1/3 HP, 3.2 Amp., 4,600 RPM
  • VOLTAGE: 120V, 1 phase, 60 Hz
