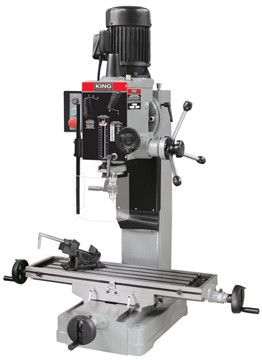

Description:

• Safety guard with limit switch protection
• Magnetic line interruption switch needs a restart after a power failure
• Powerful 1.5 HP single phase motor
• Spindle is equipped with four heavy-duty tapered roller bearings
• Forward and reverse switch
• Table control hand wheels have large micrometer dials graduated in .001"
• Comes complete with 3" face cutter, 3-1/2" angle vise and safety guard

Specifications:

• DRILLING CAPACITY: 1-1/4"
• MAX. DISTANCE SPINDLE NOSE TO TABLE: 18"
• SWING: 20-7/16"
• SPINDLE TAPER: R8
• SPINDLE STROKE: 5"
• SPEEDS: 6 (60-1,500) RPM
• FACE MILL CAPACITY: 4"
• END MILL CAPACITY: 1-1/4"
• MAX. LONGITUDINAL TRAVEL: 20-1/2"
• MAX. CROSS TRAVEL: 8-1/4"
