- King Canada - Oscillating Spindle Sander - KC-OVS-TL

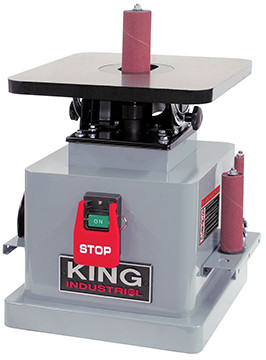

King Canada - Oscillating Spindle Sander - KC-OVS-TL
$799.00
$1,082.69
(You save $283.69)
Product Details
Description:
- Rotating and oscillating effect ensures exceptional finishing results
- Precision ground heavy-duty cast-iron table
- Table can be tilted downwards up to a maximum of 45° to allow the sanding of beveled parts
- Graduated bevel scale for accurate reading of the degree of tilt
- On-board side mounted spindle and table insert storage
- A plastic 2" dust hood is supplied under the table for connection to a dust collector
- Comes standard with 3 spindles (1/4", 1/2" and 5/8") and 2 drums (1-1/2" and 2")
Specifications:
- OSCILLATIONS PER MINUTE: 29
- OSCILLATIONS STROKE: 15/16"
- SPINDLE DRUM DIAMETER: 1-1/2" - 2"
- SPINDLE DIAMETER: 1/4" - 1/2" - 5/8"
- SPINDLE SPEED: 1,720 RPM
- TABLE SIZE: 14-3/4" x 14-3/4"
- DUST HOOD OUTLET DIAMETER: 2"
- VOLTAGE: 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 17-1/2" x 14-3/4" x 18-7/8" / 77 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 17" x 17" x 21" / 82 lbs
