Pro Shaper 7.5HP 220V 3 Phase Details:

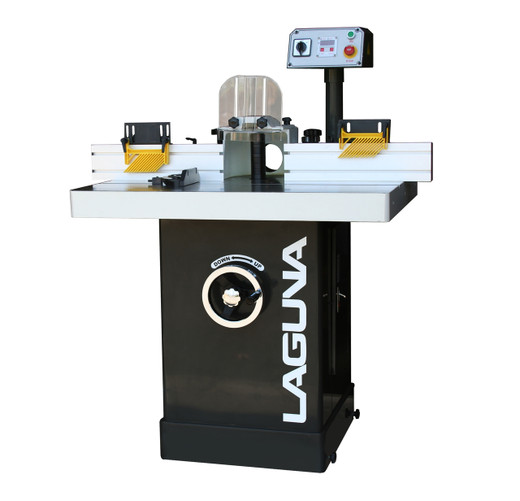

The brand new Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.

For starters, the table measures an impressive 31" x 39" and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16" adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or  7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

The fit and finish on this machine is top notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.

Pro Shaper 7.5HP 220V 3 Phase Specs:

• Motor: 7 1/2 HP 3 phase 220/440V 60 HZ prewired 220V 3 phase
• Table size: 39-5/16" X 31-7/16" X 3-1/2"
• Spindle travel: 4"
• Spindle size: 3/4" and 1-1/4"
• Capacity Under Nut: 6" (for 1-1/4") & 4" (for 3/4")
• Spindle speeds: 5000 / 7000 / 10000 rpm
• Table opening diameter: 7-5/16"
• Digital Readout: Standard
• Direction: Forward/Reversing Switch
• Fence: Micro Adjustment
