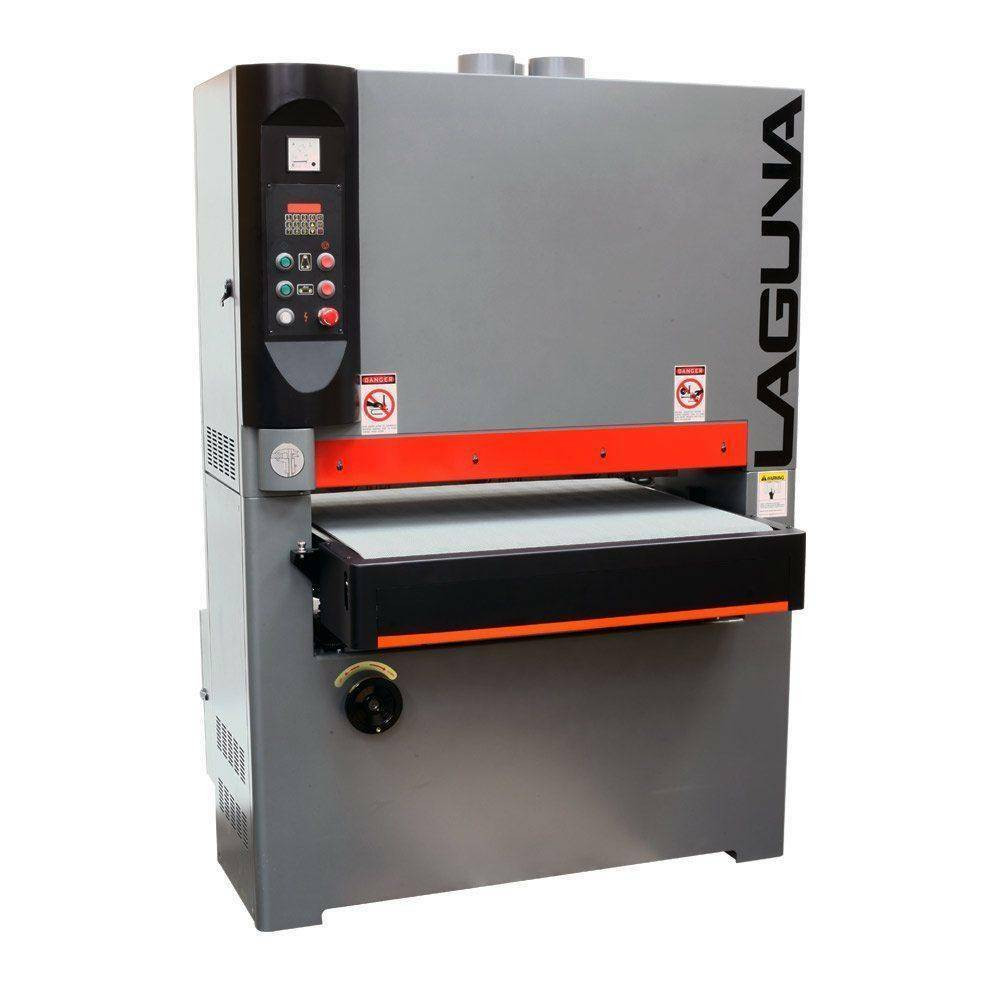

Laguna - Pro 51" Widebelt Sander 30HP 3phase - MSANWB51X75-2RK-30-0197

$61,899.00
SKU:
LAGMSANWB51X75-2RK-30-0197
UPC:
084298003035
Weight:
4,000.00 LBS
Availability:
Usually in Stock and Ships in a Few Business Days
Shipping:
$400.00 (Fixed shipping cost)
Shipping:
$400.00 (Fixed shipping cost)
Qty:

Product Details

Pro 51" Widebelt Sander 30HP 3phase Details:

Our new 51 2RK (Roller + Combo head) wide belt sander is a perfect machine for any woodworking shop.

The belt length is 75" which is the same length as much larger machines. The longer the belt it will not only last longer due to more abrasive material it will also run cooler.

This machine is equipped with 1 (8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use

a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the

Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit.

Due to the large HP motor (30 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used.

The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm.

You can adjust the thickness in 4 ways:

  • Manual hand-wheel on the bottom of the machine. (Fine tune only)
  • By pressing the up or down arrow the table will move in desired direction. By tapping these same arrows the machine will move an exact amount each tap.
  • Input a set dimension on the key pad and machine will go to that dimension
  • The auto thickness gage will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted.

CSA Fully Certified



Pro 51" Widebelt Sander 30HP 3phase Specifications:

  • Main motor: 30HP
  • Variable feed speed: 2HP
  • Table lifting motor: 0.25HP
  • Voltage: 220/3 PHASE
  • (PLC) Programmable Logic Control
  • Automatic Thickness Control
  • Max sanding height: 150mm/5.9"
  • Min sanding height: 1/4" [6.4 mm]
  • Max sanding width: 51" [1300 mm]
  • Sanding belt size: 51" X 75" [940 mm X 1905 mm]
  • Adjustable sanding platen: 1-3/4" inch [45 mm]
  • Diameter of sanding drum: 8” + 4”
  • Length of sanding drum: 51”
  • Sanding drum RPM: 1725 RPM
  • Conveyor speed: 12-60 FPM,
  • Dust port size: 4" [100 mm]
  • Number of dust ports 3
  • Foot print: 63” X 65” X 98”
  • Conveyor height at lowest setting: 32 inches [813 mm]
  • Cabinet: Steel
  • Operating air pressure: 6 Bar
  • Sanding belt oscillation: Pneumatic/Adjustable
  • Sanding belt motor break: Yes. Air operated disc break
  • CSA: Fully Certified
  • Net Weight: 4200 Lbs.
  • Ship Weight: 4450 Lbs.
